Product Introduction:

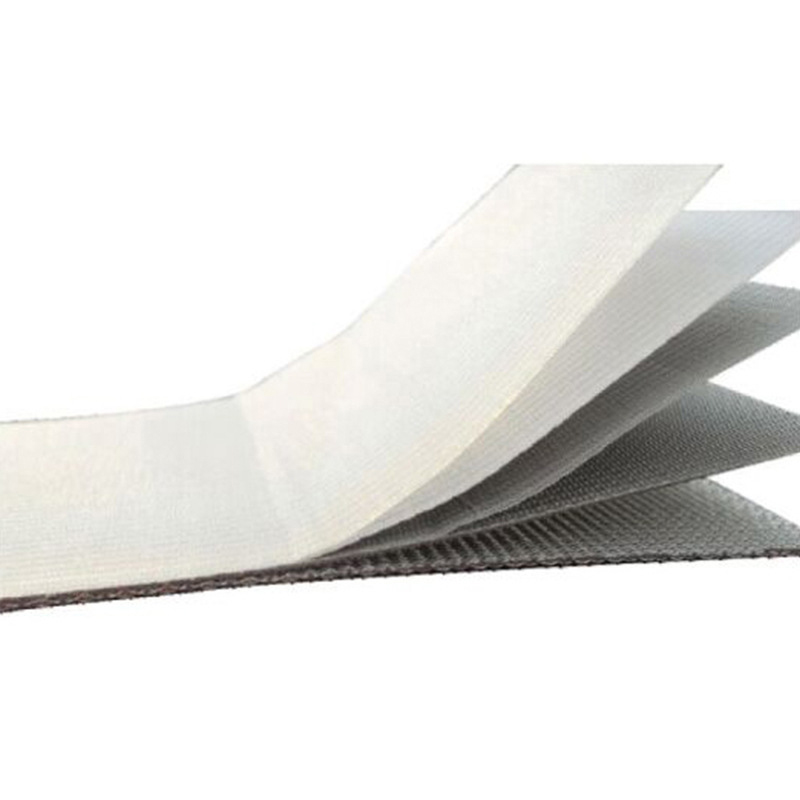

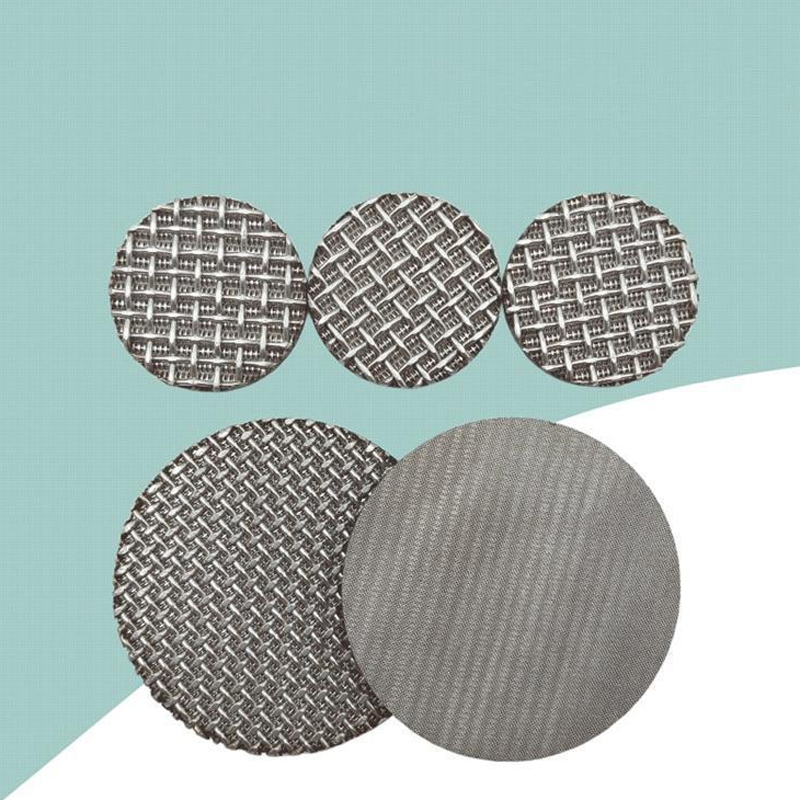

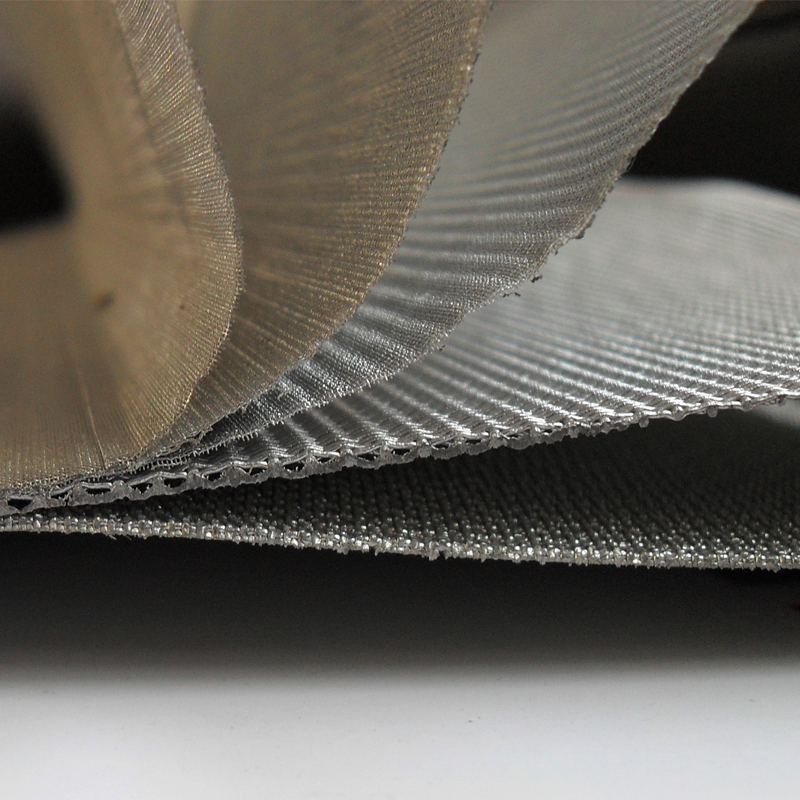

The standard five layer sintered mesh structure consists of four parts: protective layer, filter layer, dispersion layer, and skeleton layer. This filter material has both uniform and stable filtration accuracy, as well as high strength and rigidity. It is an ideal filter material for situations where high compressive strength and uniform filtration accuracy are required. Due to its surface filtration mechanism and smooth mesh pores, it has excellent backwashing and regeneration performance, which can be repeatedly used for a long time. It is particularly suitable for continuous and automated operation processes and cannot be compared to any other filtering material. This material is easy to form, process, and weld, and can be easily processed into various forms of filter elements such as circular, cylindrical, conical, corrugated, etc.

Product Features:
1. Good strength and rigidity: It has extremely high mechanical strength and compressive strength, good processing, welding, and assembly performance, and is easy to use;
2. Uniform and stable accuracy: Uniform and consistent filtering performance can be achieved for all filtering accuracies, and the mesh holes do not change during use;
3. Wide range of usage environment: It can be used for filtering in temperature environments ranging from -200 ° C to 600 ° C and acid-base environments;
4. Excellent cleaning performance: The reverse flow cleaning effect is excellent, it can be reused repeatedly, and has a long service life (it can be cleaned using methods such as reverse flow water, filtrate, ultrasonic, melting, baking, etc.).

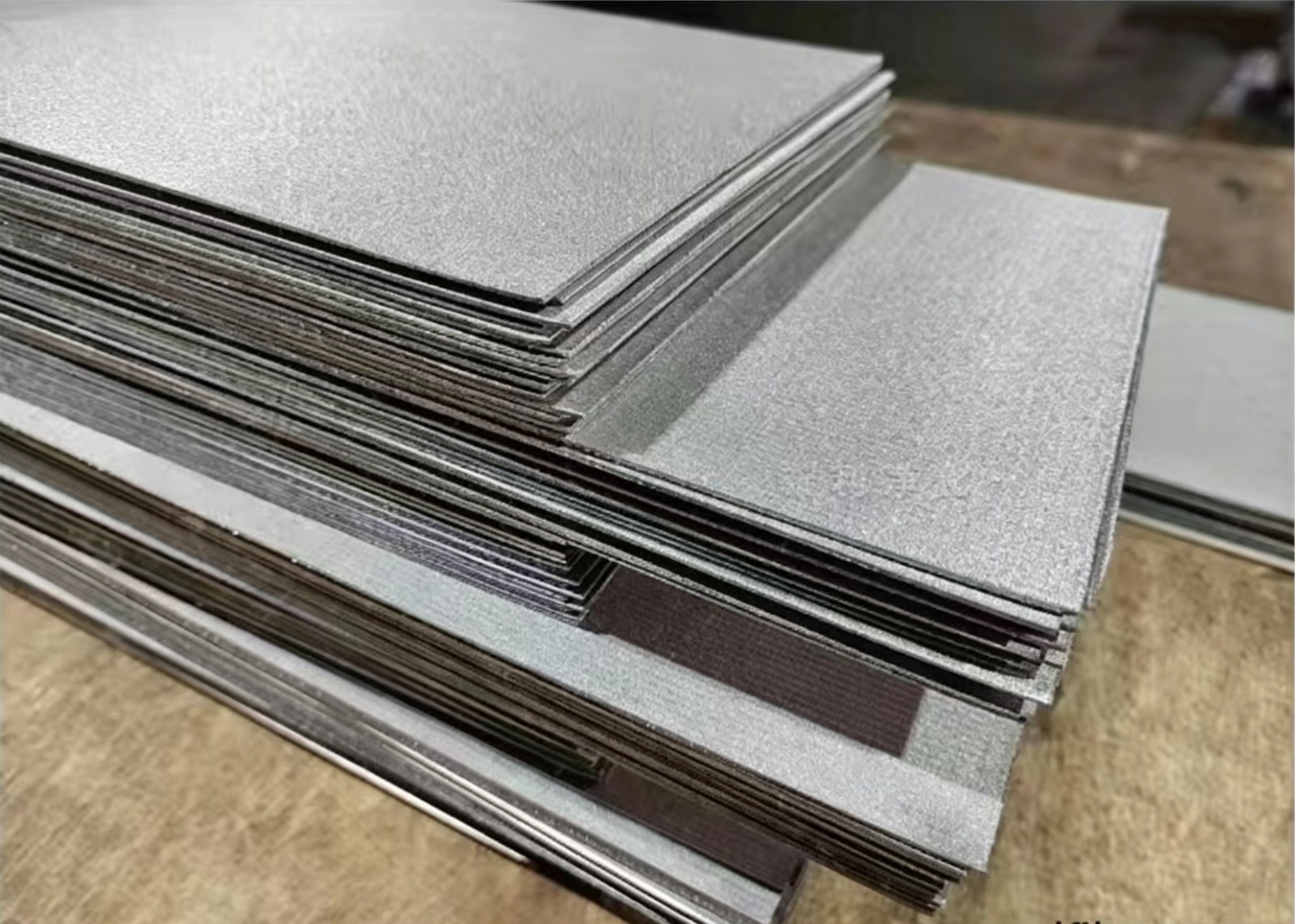

Product specifications and dimensions:
1. Standard materials: SUS304, SUS316L
2. Specification dimensions: 1000mm * 500mm, 1000mm * 600mm, 1000mm * 1000mm, 1200mm * 1000mm, 1200mm * 1200mm;
3. Filtering accuracy: 1~300um;
4. Special materials (Monel alloy, 904L, C276, 2205, 2507, etc.) and sizes can be supplied according to the requirements of the demand.
